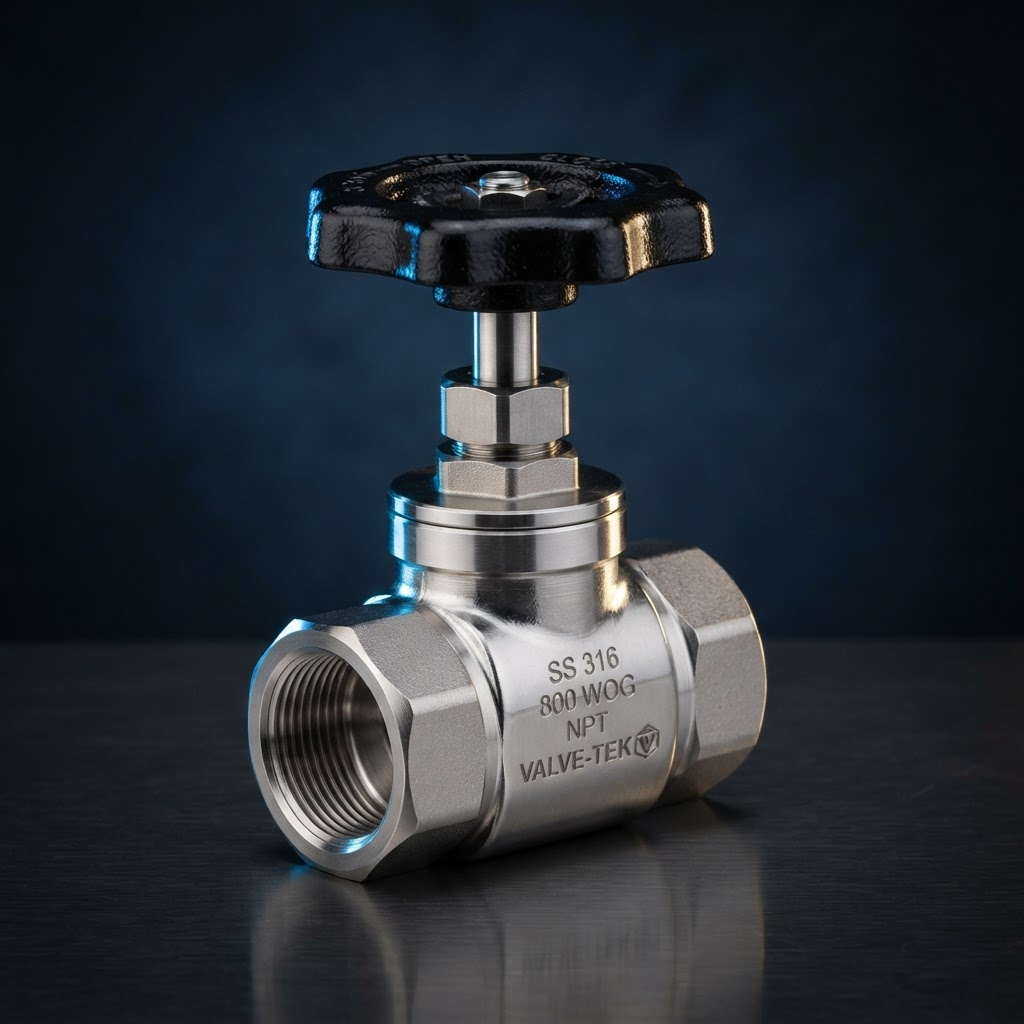

SS Barstock Gate Valve

Size Range: 1/2" to 4" (15mm – 100mm)

Design Standard: BS 5352
Pressure Test: BS 6755
Body & Bonnet: AISI 304 / 316
Ends: Screwed BSP / BSPT / NPT
Test Pressure: Body 425 psig, Seat 300 psig
Options: Flanged ANSI B16.5 RF 150#, BS10 Table D/E/F

Enquire Now

Code: SBGTVS

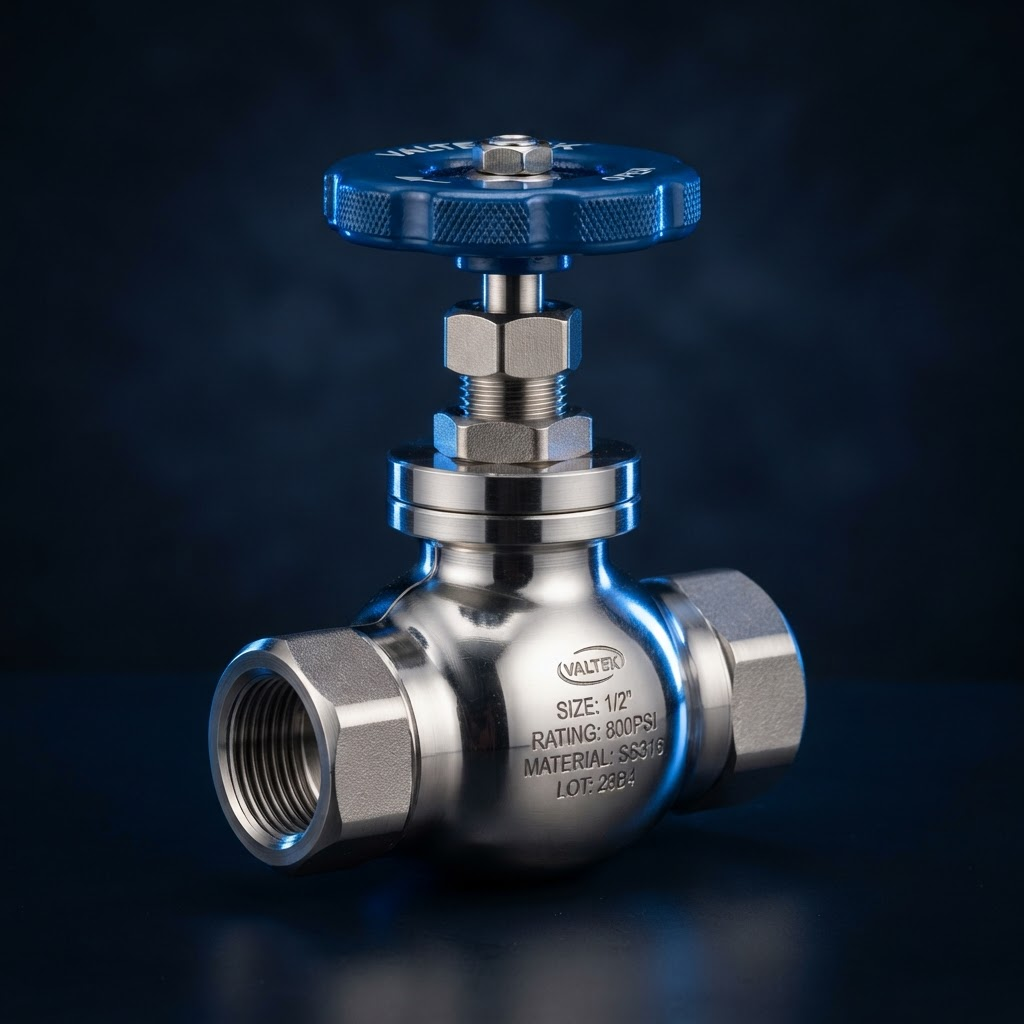

SS Barstock Globe Valve

Size Range: 1/2" to 4" (15mm – 100mm)

Design Standard: BS 5352
Body & Bonnet: AISI 304 / 316
Trim: AISI 304 / 316
Ends: Screwed BSP / BSPT / NPT
Test Pressure: Body 425 psig, Seat 300 psig
Pressure Rating: 300#

Enquire Now

Code: SBGTVS

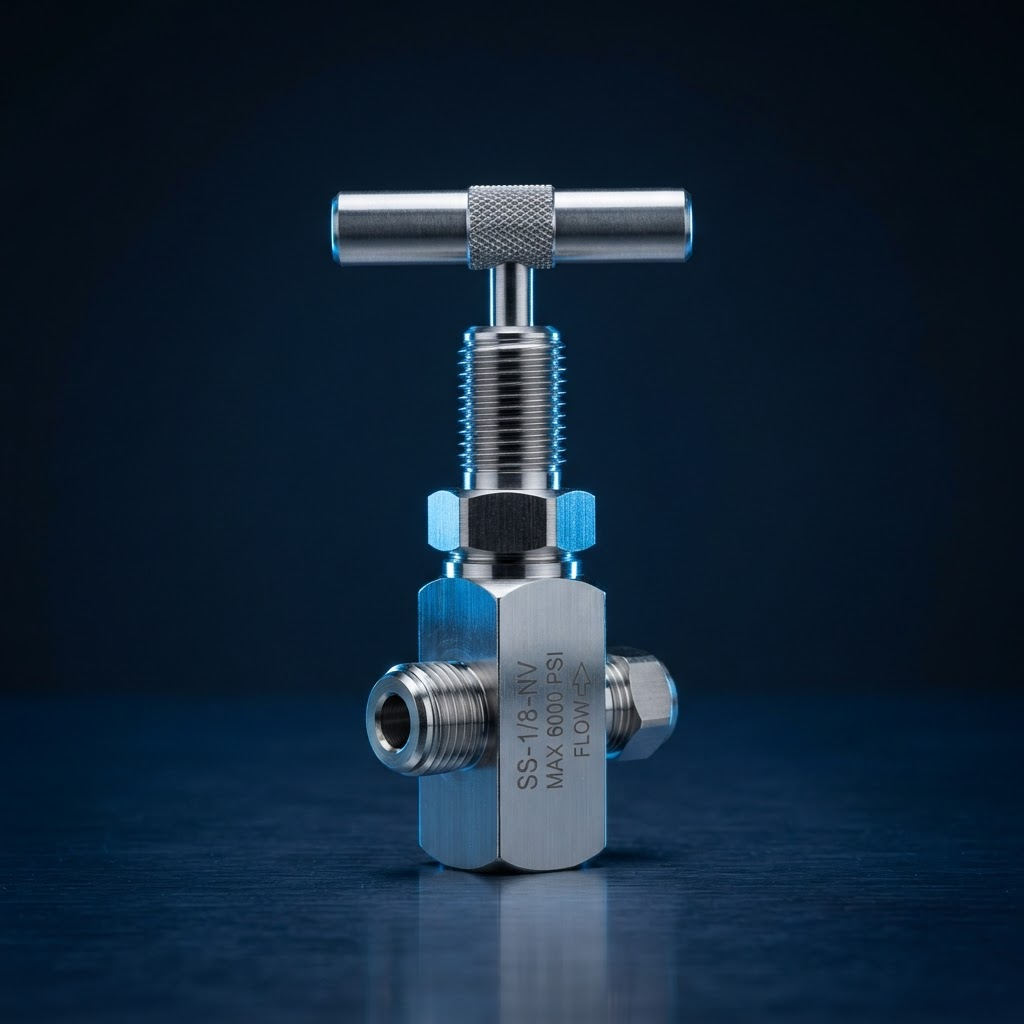

SS Needle Valve

Size Range: 1/2" to 1" (15mm – 25mm)

Body & Bonnet: AISI 304 / 316
Trim: AISI 304 / 316
Ends: Screwed BSP / BSPT / NPT
Test Pressure: Body 1100 psig, Seat 800 psig

Enquire Now

Code: SBGTVS

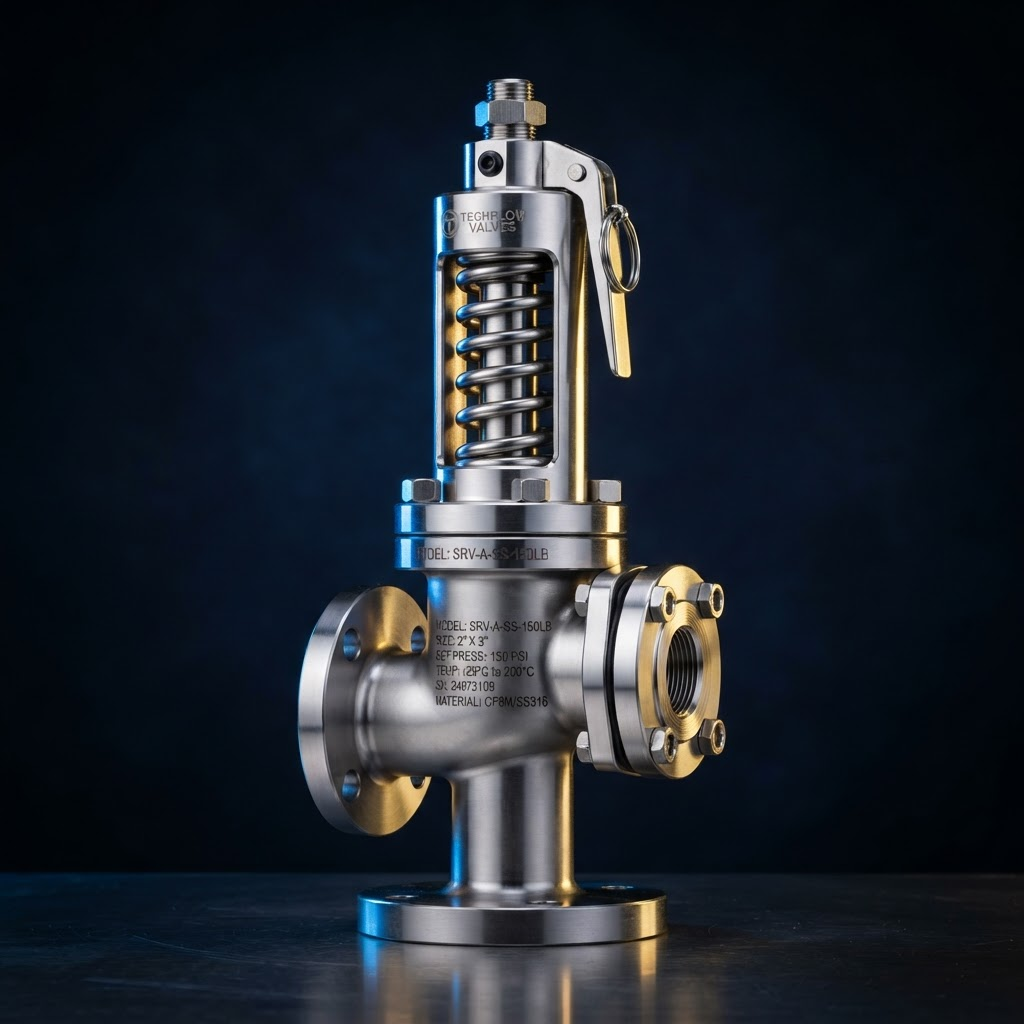

SS Safety Relief Valve

Size Range: 1/2" to 2-1/2" (15mm – 65mm)

Type: Spring Loaded Relief — Open / Enclosed Discharge (Angle Type)
Body & Bonnet: AISI 304 / 316
Ends: Screwed BSP / BSPT / NPT
Test Pressure: 150 psig (10 kg/cm²)
Options: Conforms to API 526, Flanged 150#

Enquire Now

Code: CSBGTVS

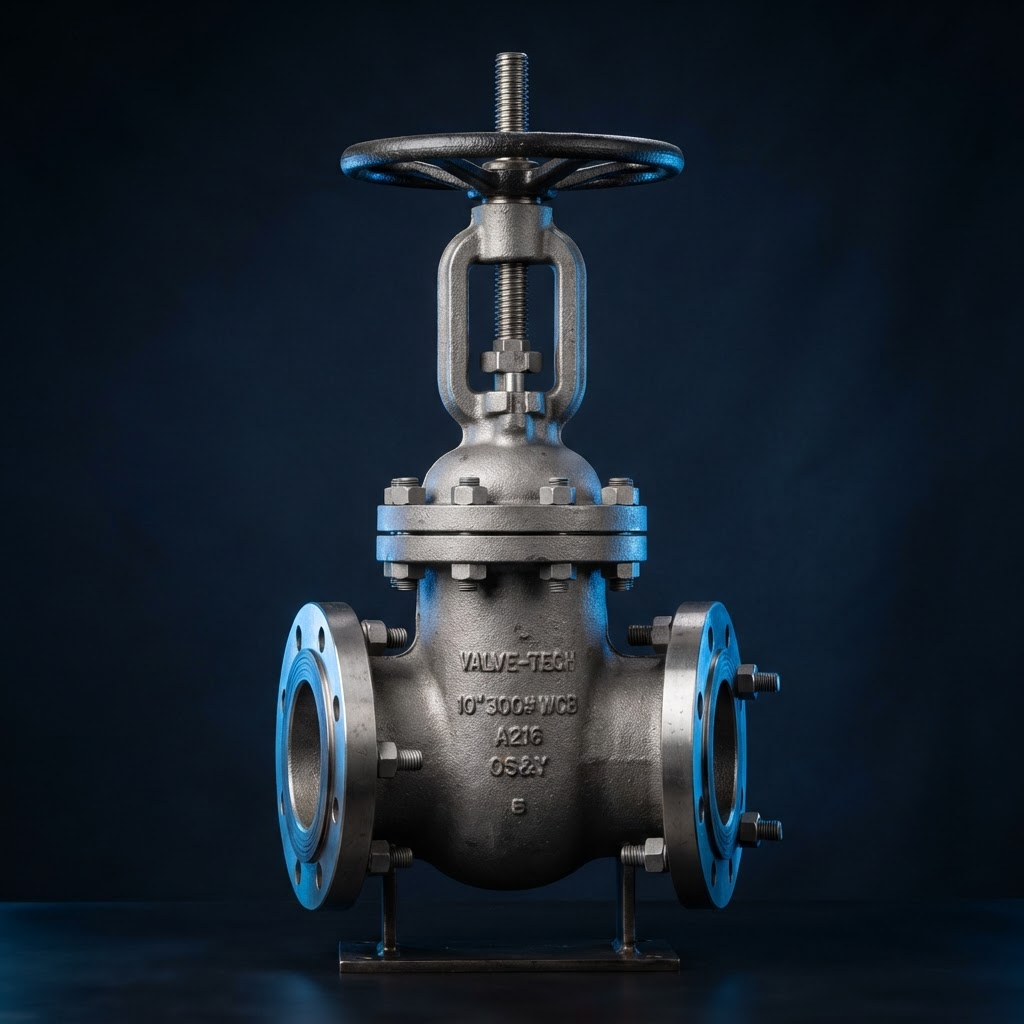

Cast Steel Gate Valve OS&Y

Size Range: 1" to 12" (25mm – 300mm)

Design Standard: API 600 / API 6D
Pressure Test: API 598
Body & Bonnet: ASTM A216 Gr. WCB / A351 CF8 / CF8M
Trim: ASTM A182 F6a (AISI 410)
Test Pressure: Hydro 450 psig, Air 315 psig
Ratings: 150# / 300# / 600# / 900# / 1500# / PN40

Enquire Now

Code: CSBGTVS

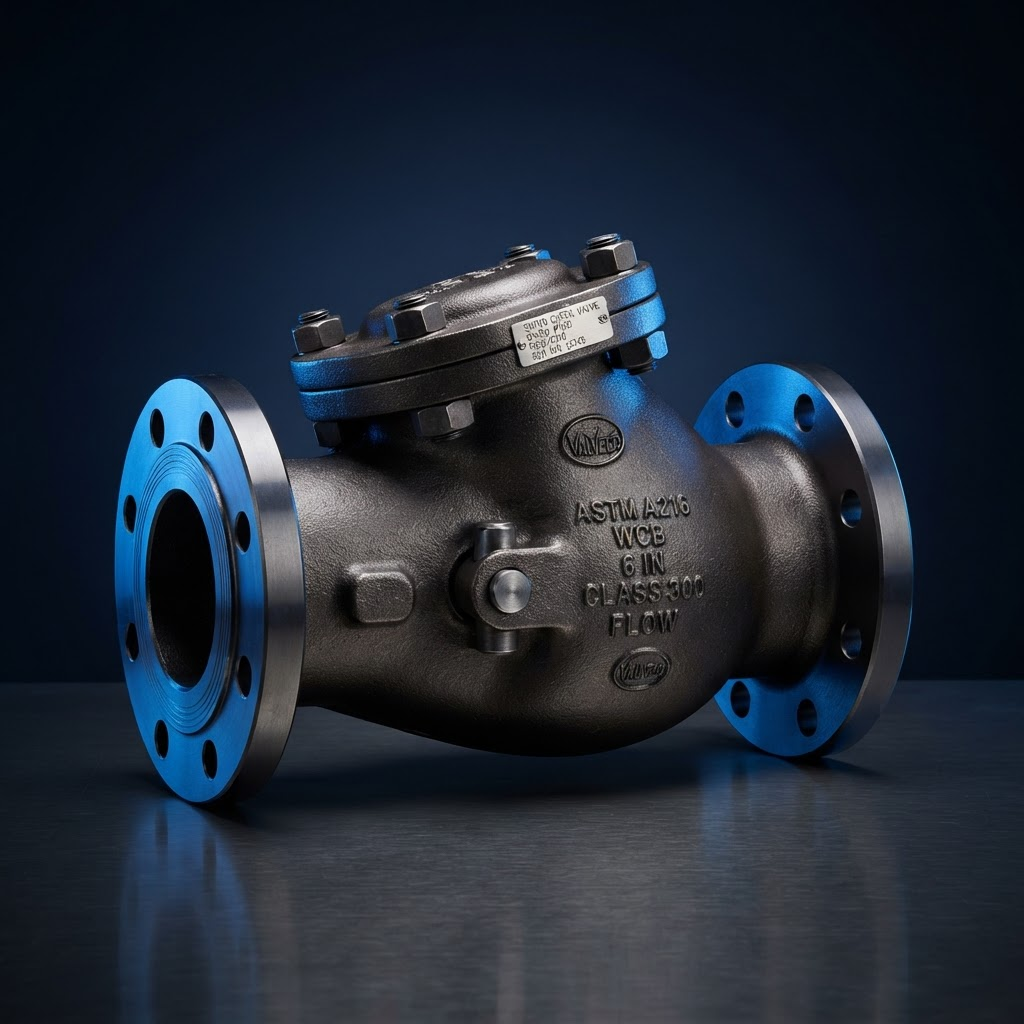

Cast Steel Check Valve

Size Range: 1" to 12" (25mm – 300mm)

Design Standard: BS 1868 / API 6D
Pressure Test: API 598 / BS 5146
Body & Cover: ASTM A216 Gr. WCB / A351 CF8 / CF8M
Ends: Flanged ANSI B16.5 RF 150#
Test Pressure: Body 425 psig, Seat 300 psig

Enquire Now

Code: CSBGTVS

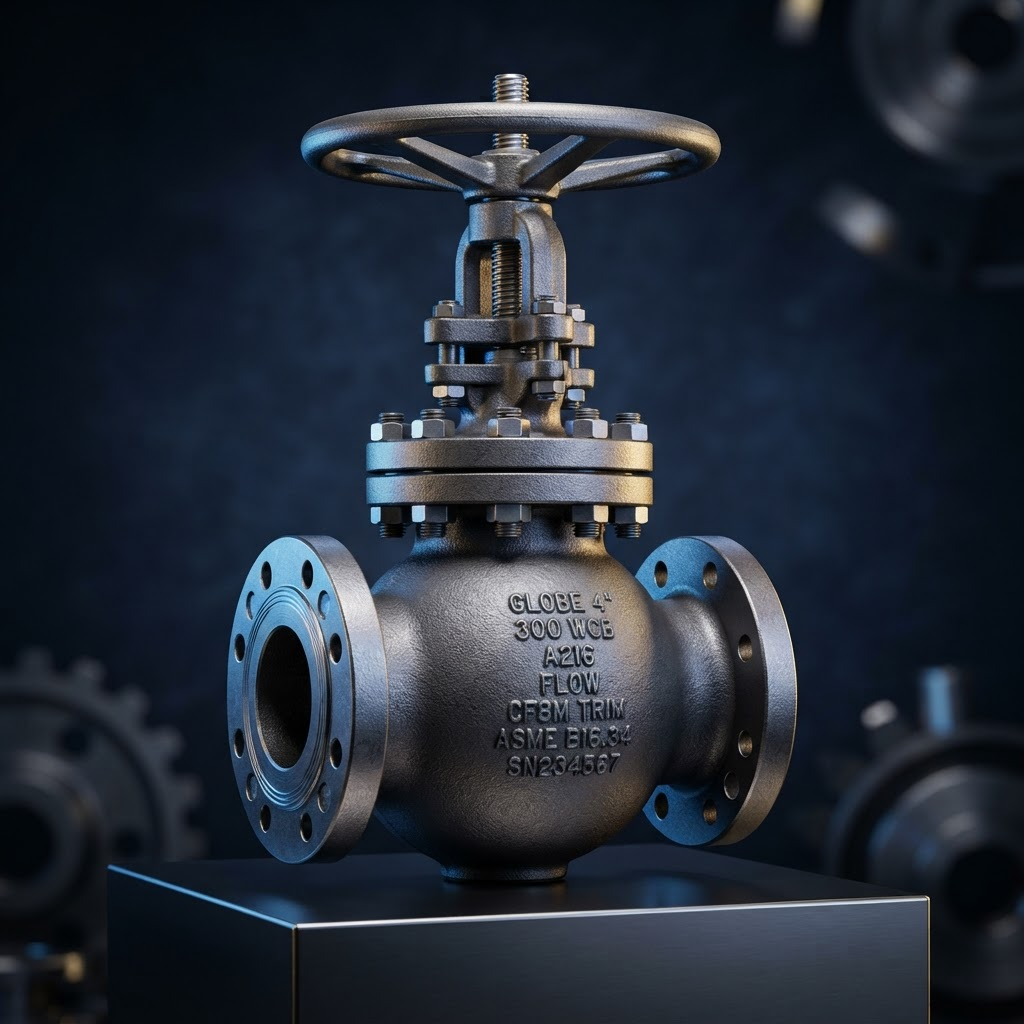

Cast Steel Globe Valve

Size Range: 1" to 12" (25mm – 300mm)

Design Standard: BS 1873
Pressure Test: API 598
Body & Bonnet: ASME A216 Gr. WCB / A351 CF8 / CF8M
Trim: ASTM A182 F6a (AISI 410)
Ratings: 300# / 600# / 900# / 1500# / PN40

Enquire Now

Code: SSBV

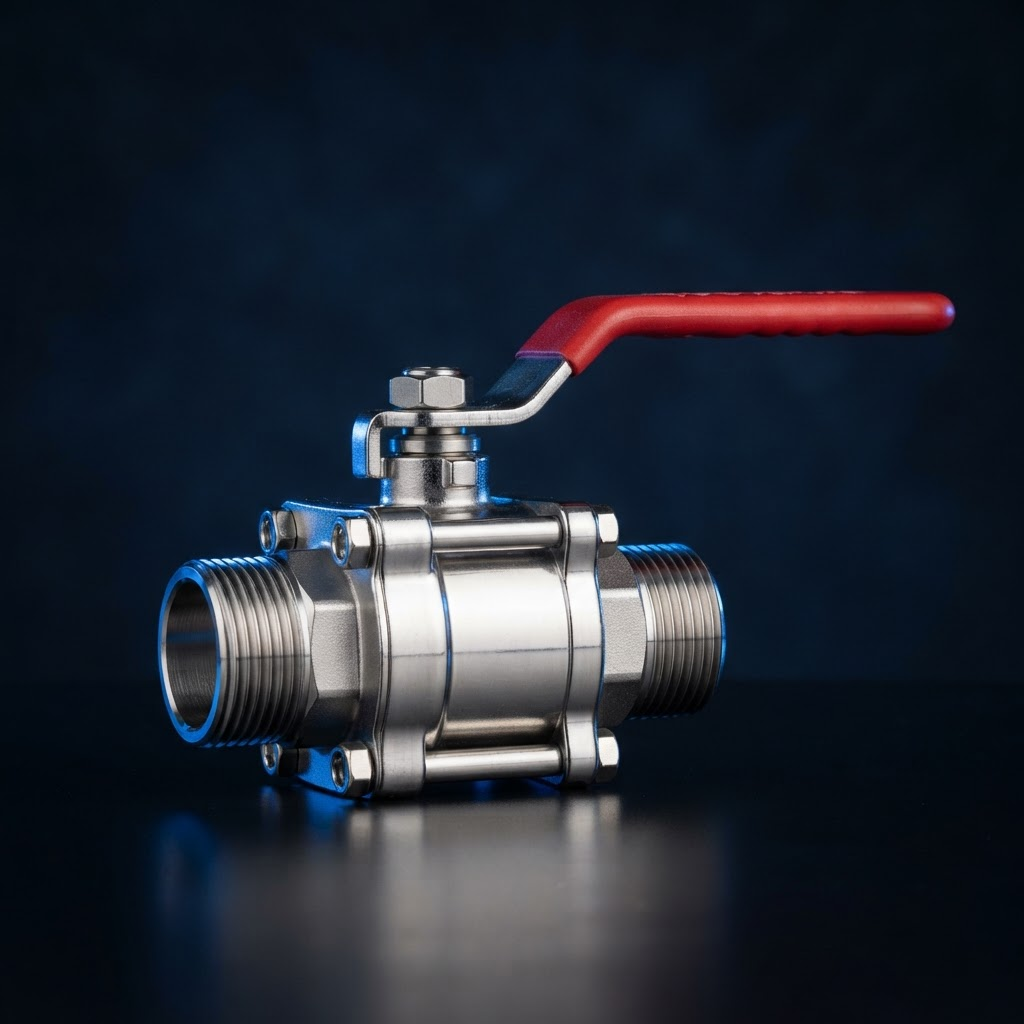

Special Service Ball Valve

Size Range: 1/4" to 4" (8mm – 100mm)

Material: ASTM A351 Gr. CF8 / CF8M
Ends: Screwed BSP/NPT, Socket Weld, Butt Weld, Tube End, Triclover, Flanged 150#
Application: Pharmaceutical Industries

Enquire Now

Code: ATPF 03

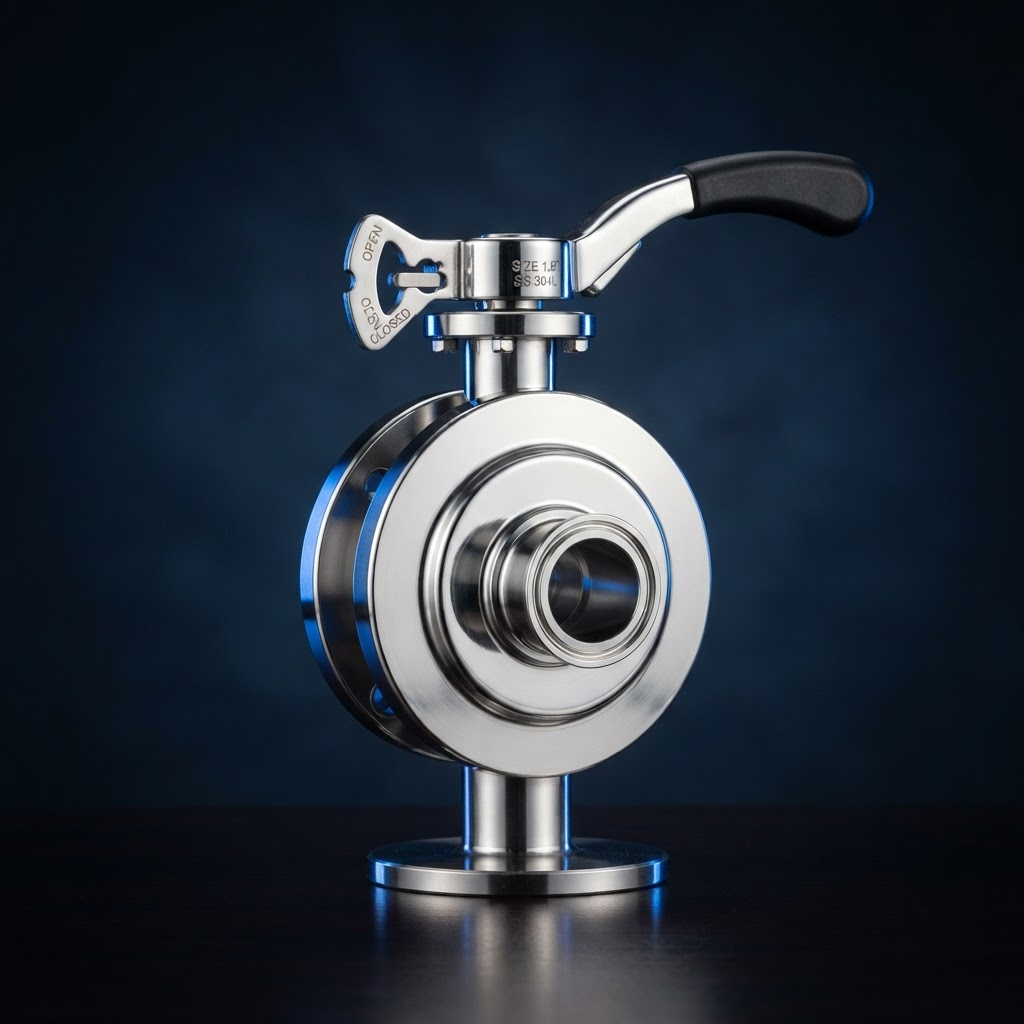

Butterfly Valve

Size Range: 1" to 12"

Material: SS 304 / 316 Sanitary Grade
Ends: Threaded / Wafer / TC End
Application: Dairy, Food & Beverage, Pharma

Enquire Now

Code: TCGV

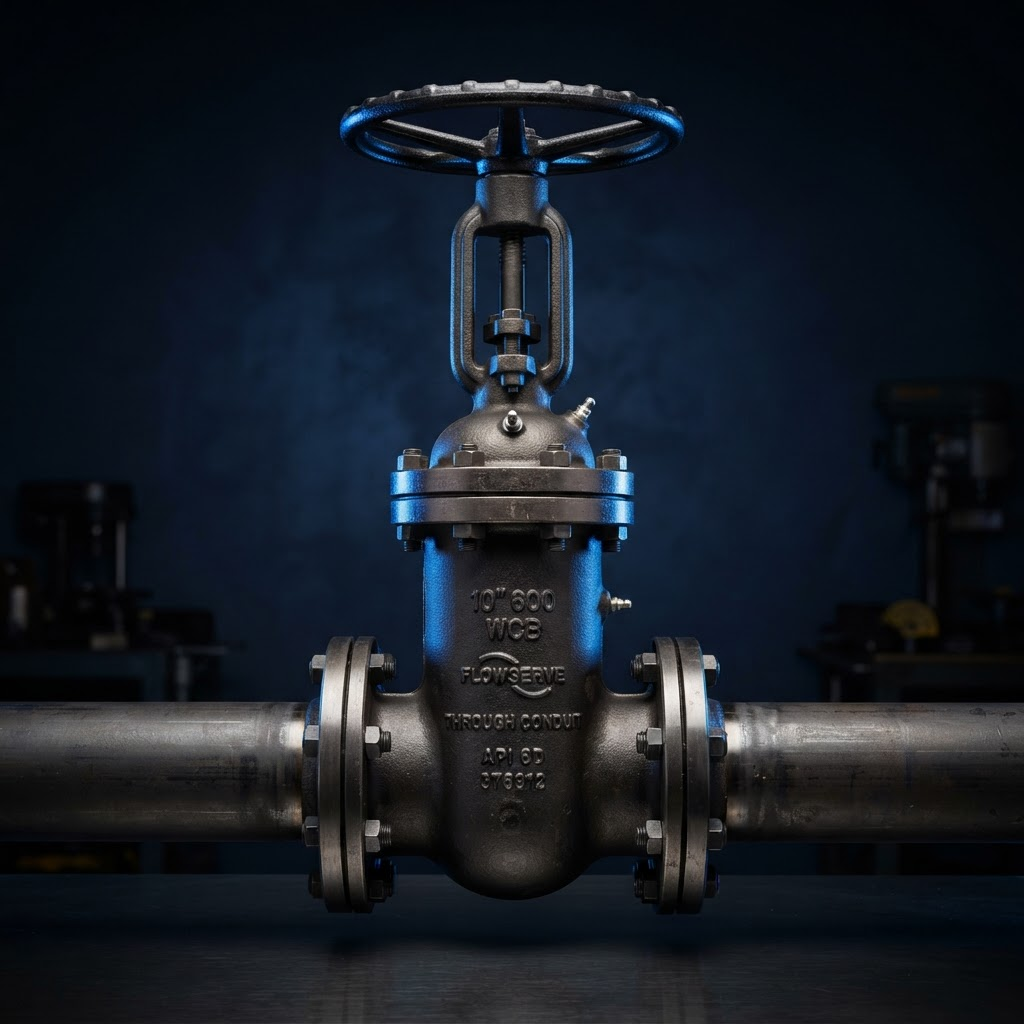

Through Conduit Gate Valve

Size Range: 2" to 12" (50mm – 300mm)

Material: Cast Iron / ASTM A351 CF8 / CF8M / A216 WCB
Ends: Flanged ANSI B16.5 RF 150#

Enquire Now

Code: LV / JV

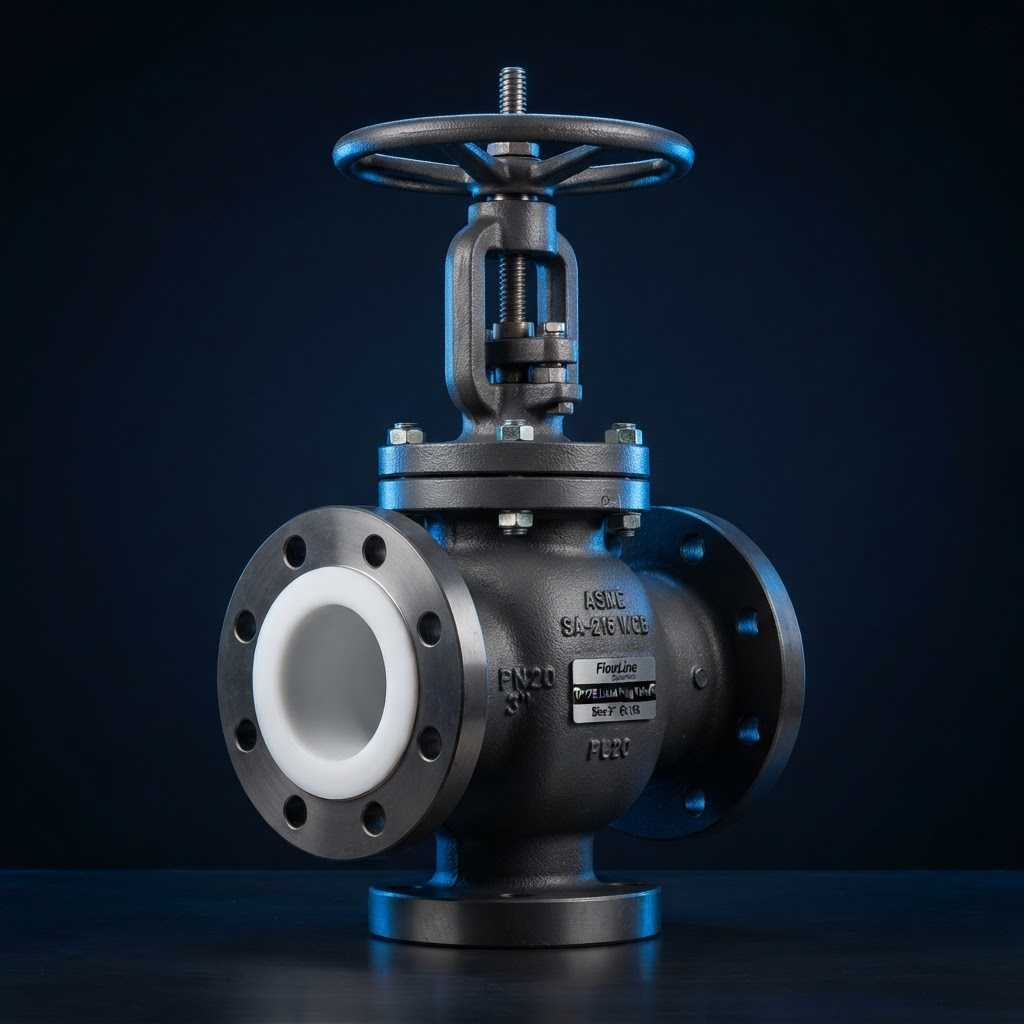

Lined & Jacketed Valves

Size Range: 2" to 12" (50mm – 300mm)

Material: Cast Iron / ASTM A351 CF8 / CF8M / A216 WCB
Ends: Flanged ANSI B16.5 RF 150#
Application: Corrosive & temperature-controlled media

Enquire Now

Code: ATPF 10 / 12

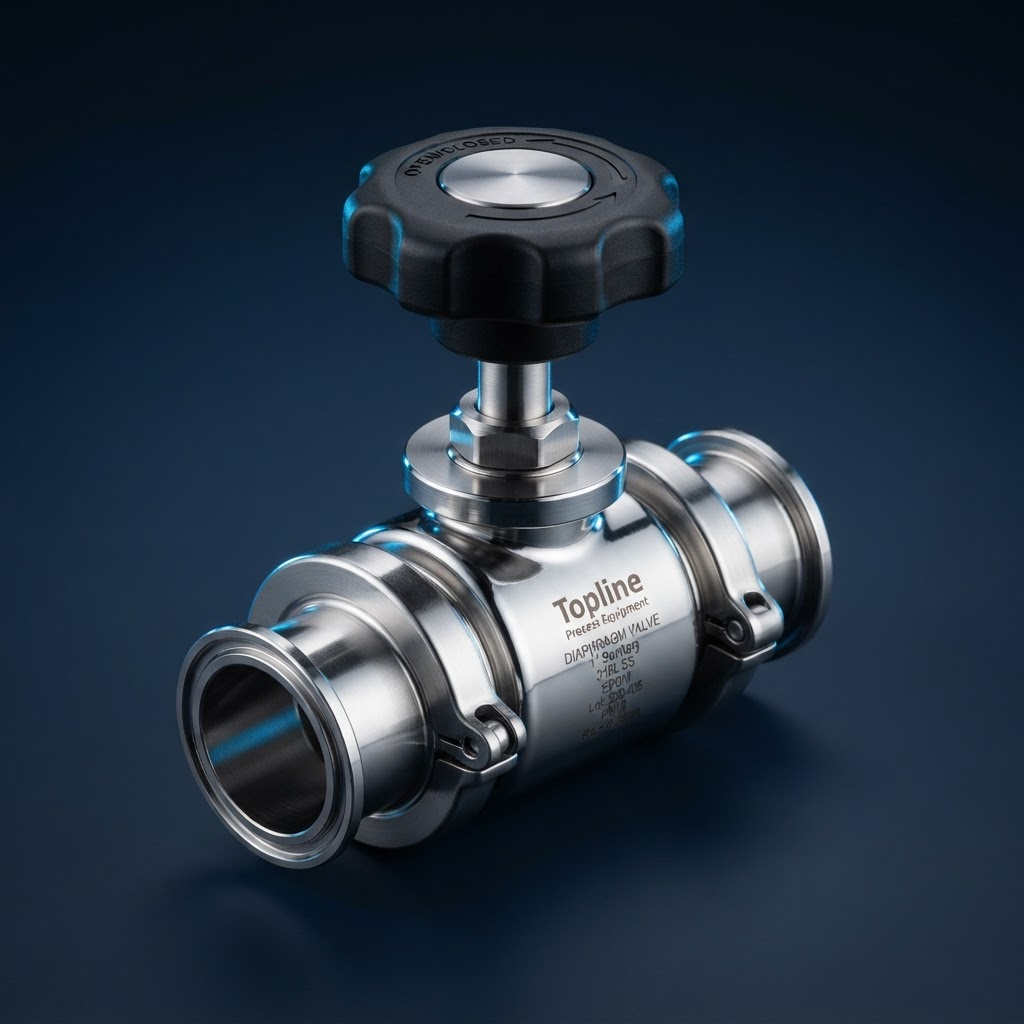

Diaphragm & Sample Valves

Size Range: 1/4" to 4"

Material: SS 304 / 316L Sanitary Grade
Ends: TC End / Butt Weld / Threaded
Application: Pharma, Bioprocess, Dairy

Enquire Now
